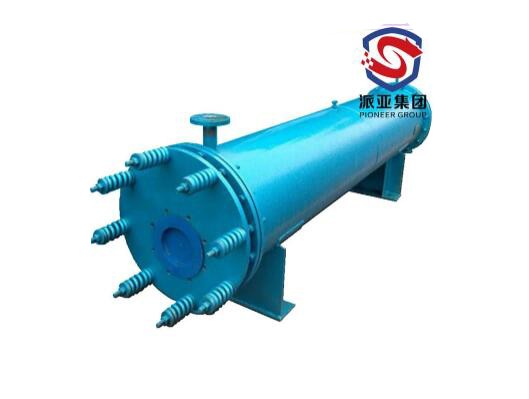

Cylindrical block type graphite heat exchanger

Description

Cylindrical block type graphite heat exchanger is an important chemical production equipment. It has a series of excellent properties: good heat transfer performance, simple structure, convenient manufacturing, low cost and corrosion resistance, etc., a wide range applicating in chemicals, fertilizers, pesticides, metallurgy, waste treatment and other industrial fields for condensing, cooling, heating, vaporation & absorbing.It is mainly applicated in chlor-alkali chemical, petrochemical, fluoride salt, titanium dioxide, zirconium, chloroacetic acid, chlorinated paraffin, monocrystalline silicon fluorine chemical and other chemical production industries.

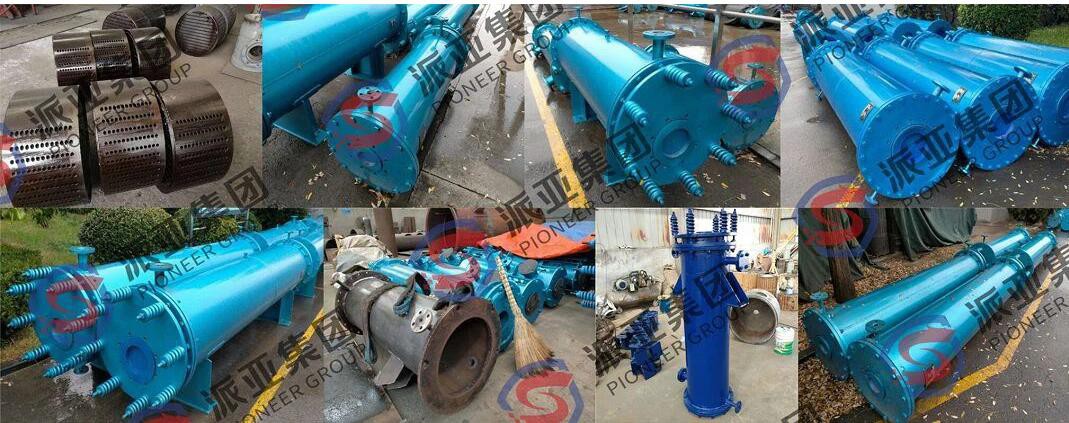

Each heat exchange cylindrical graphite block have drilled with two sets of non-connected holes to flowing pass two different temperature medium to achieve the purpose of heat exchange. These optimized cylindrical blocks impregnated with phenolic resin or furan resin, and constitute by stacking formed the heart of the graphite heat exchanger. These graphite blocks associable between them, allow adaptability and perfect match to the need of customers. Installation with vertical and horizonal type.

PRODUCT SPECIFICATION

APPLICATION WHERE GRAPHITE HEAT EXCHANGER USED

*Acid pickling bath;

*Corrosive chemistry;

*Fine chemistry;

*Pharmacy.

FEATURES OF GRAPHITE BLOCKS

☆ Excellent resistance to corrosive fluids - Suiltable for non-oxidizing or weakly oxidizing strong acids, alkalis, salt solutions, organic acids, most organic solvents and composite media (except strong alkalies, it can corrosion the resin which impregnated in blocks and cause the block leakage).

☆ High thermal conductivity - The thermal Conductivity of graphite is higher than most metals, 2 times greater than carbon steel, 5 times greater than stainless steel.

☆ Electrical conductivity that is secured for use in a explosion proof area.

☆ Low linear dilatation coefficient,

☆ Resistant to temperatures up to 170°C.

☆ Surface is not easy to scale and no pollution.

☆ Easy machining.

☆ Low density with light weight.

PRODUCT ADVANTAGES

☆ High heat exchange efficiency

☆ Strong corrosion resistance

☆ Compact structure with greater available floor space

☆ Large heat exchange surface area possible by block stacking

☆ Adapted to high flow rates

☆ Easy installation and maintenance

☆ Customized Design - Design and manufacture according to the condition and requirement of customer

HOW TO AVOIDING DAMAGE IN GRAPHITE HEAT EXCHANGER

☆ The graphite is a brittle material, and the steam/water valve should be opened gradually during initial heating/cooling to avoid damage to the graphite block due to liquid shock.

☆ Avoid mechanical impact on the heat exchanger body.

☆ When not in use for a long time, drain the condensed water in the heat exchanger to avoid the graphite block freezing and cracking in winter.

☆ Avoid corrosion of steel shell and cover by leaked corrosion medium.

☆ Avoid strong alkali enter the interior of heat exchanger to damage the impregnating resin and cause block leakage.

☆ Please use the heat exchanger within the specified temperature and pressure.
