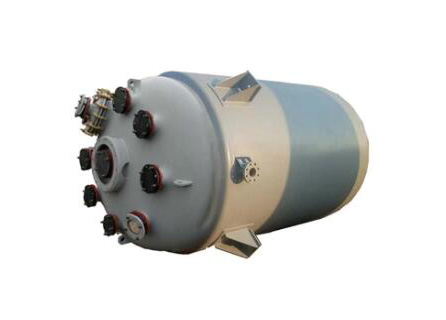

Q type glass lined reactor

Description

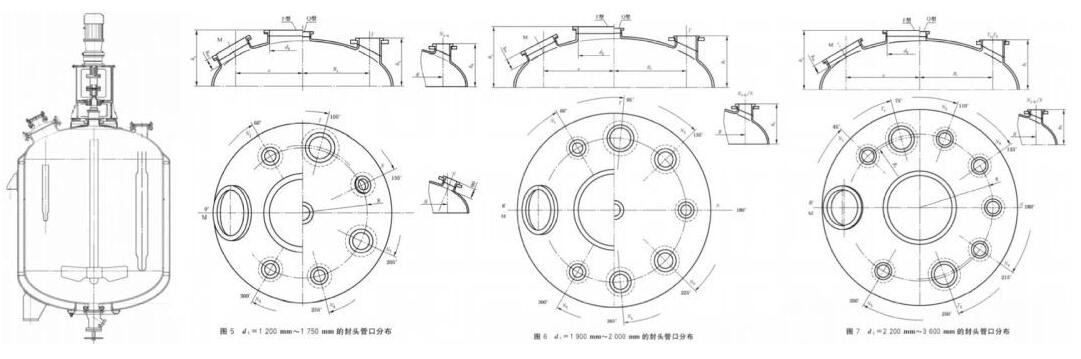

Q type glass lined reactor has a small size nozzle on head cover that only allowed agitator shaft pass in, the removable blade of agitator into the vessel body by though manhole and then assembly/locked onto agitator shaft by cooling assembly method. It is design and manufacture according to the Chinese national standard/ASMEstandard. Heating and/or cooling method is with a u type jacket or outer-side semi-coil/limpet type jacket through by medium of steam, water or thermal oil.

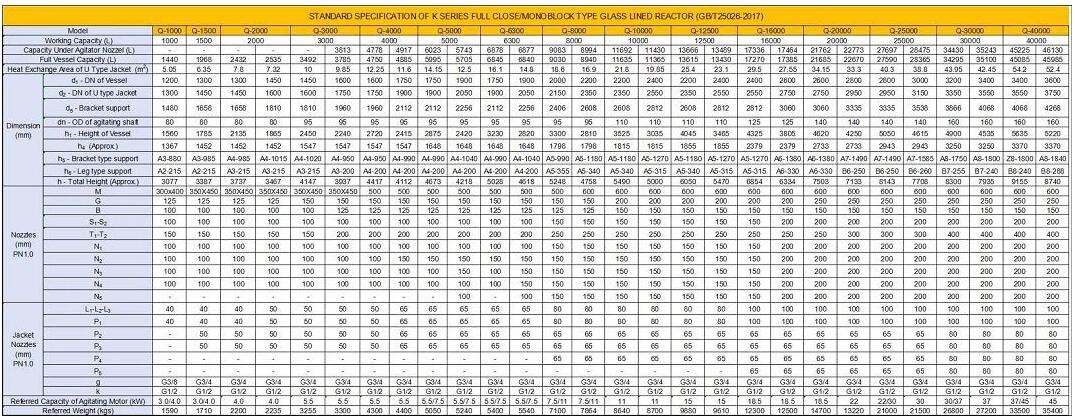

PRODUCT SPECIFICATION

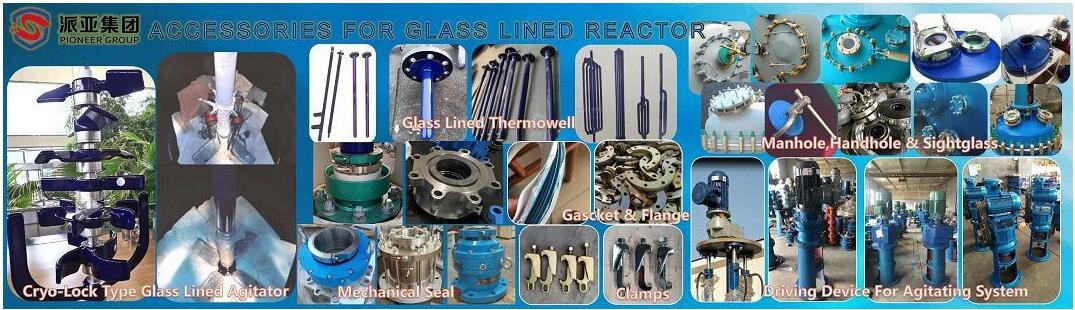

ACCESSORIES FOR GLASS LINED REACTOR

INAPPLICATION MEDIA & OPERATING CONDITIONS FOR GLASS LINED EQUIPMENT

CAUTION ITEMS DURING MAINTENANCE AND OPERATING OF GLASS LINED EQUIPMENT

MAJOR FACTORY INSPECTION

◆Mechanical performance test for steel substrate

◆Tensile strength test for clamps

◆Anti-corrosion performance test for glass lining/enamel with test bar or block

◆Weld joint inspection with Head: RT-100% and shell: RT-20%

◆Nozzles position and flatness inspection

◆Visual inspection for the lined glass layer after firing

◆Lined glass thickness detection after firing

◆20kV spark test for the lined glass layer after firing

◆Hydraulic test for Jacket and Vessel

◆No-load running rest and working test with water to test the performance of agitating & electric control system

◆10kV spark test and finish inspection for the lined glass layer before delivery
