Glass Lined RCVD From Pioneer

Description

Product Performance

Working medium：organic acid, inorganic acid, organic solvent and weak alkaline medium (except hydrofluoric acid, medium containing fluorine ions, strong alkali with pH value greater than 12 and concentrated phosphoric acid with temperature exceeding 180 degrees and concentration exceeding 30%)

Nominal volume: 50 - 8000L

Design pressure: Body: -0.1~+0.4MPa, jacket: 0.6MPa

Heating medium: Hot Water / Steam / Oil

Standard: improve the design according to GB/T 150-2011, HG/T 25025-2010, HG/T 3684-2017 or customize according to customer requirements

product advantages

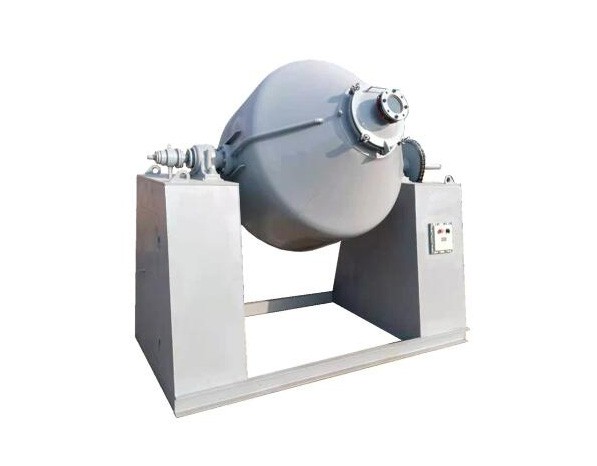

Glass lined RCVD from Pioneer is a multi-purpose equipment that integrates mixing and vacuum drying.

It is suitable for vacuum drying and mixing of materials in the process flow of medicine, chemical industry, fine chemical industry and food industry.

It can also be used for low temperature concentration of chemical reaction solutions, especially suitable for easy oxidation. , volatile, heat-sensitive and toxic, materials that are not allowed to destroy their crystal structure during drying, and materials that require solvent recovery.

Scope of supply

Its structure mainly includes a biconical glass-lined tank, heating/cooling jacket, frame, driving device, sealing device, vacuuming device, rotary joint, temperature and pressure measuring device, control device, etc.
