F Type Glass Lined Reactor

Description

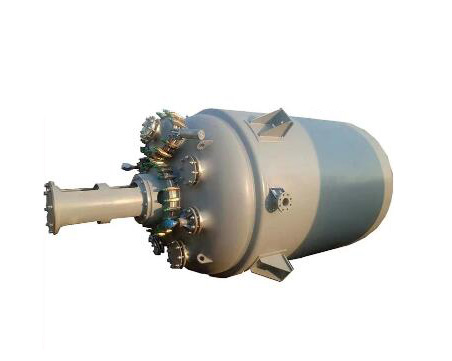

F type glass lined reactor has a opening & a cover on the vessel top head for install agitator, the diameter of opening is not more than half of vessel body diameter. It is design and manufacture according to the Chinese national standard and its structure mainly includes a close-welded glass lined vessel body, a top insert glass lined agitator, motor-gear driving device, shaft seal, U type or limpet coil type heating/cooling jacket, bottom flush valve, temperature and pressure measurement device and etc. Heating and/or cooling method is with a u type jacket or outer-side semi-coil/limpet type jacket through by medium of steam, water or thermal oil.

Design and manufacture standard of F type glass lined reactor is according to GB/T150.1~4-2011, TSG21-2016/XG1-2020, GB/T25025-2010, GB/T25026-2017.

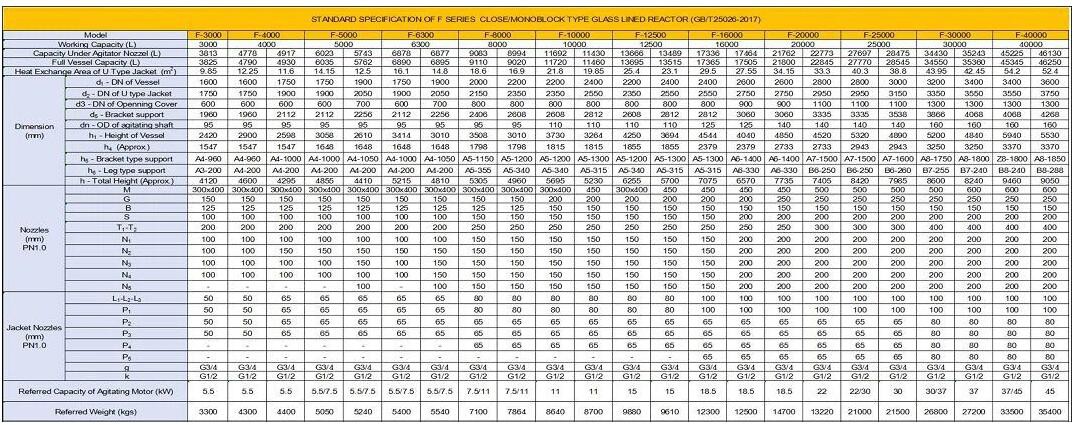

STANDARD PRODUCT SPECIFICATION

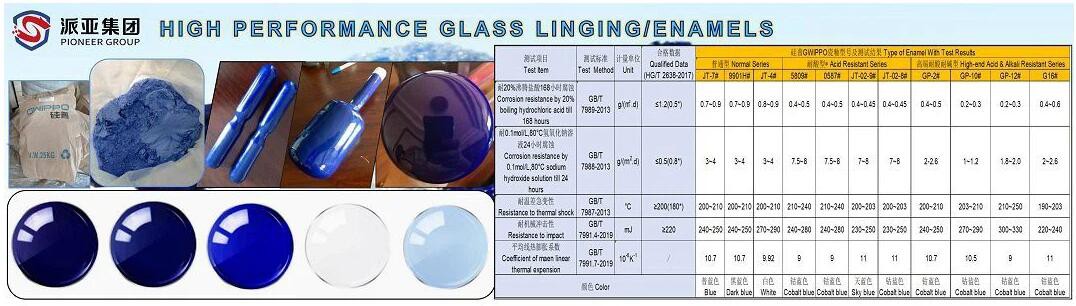

HIGH PERFOMANCE GALSS LINING

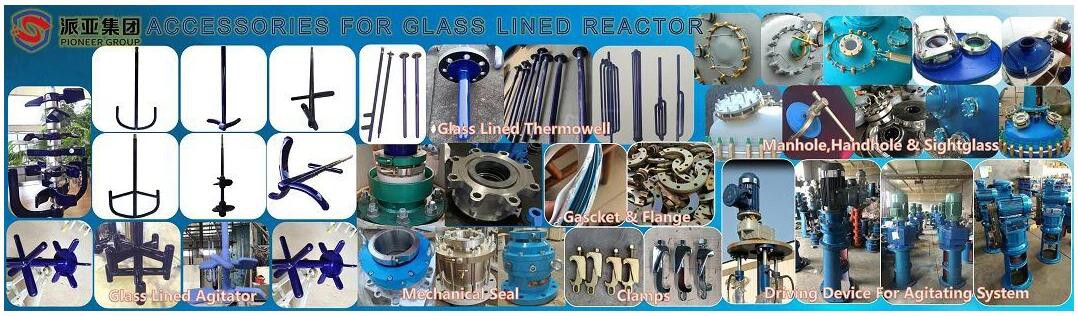

GLASS LINED REACTOR ACCESSORIES

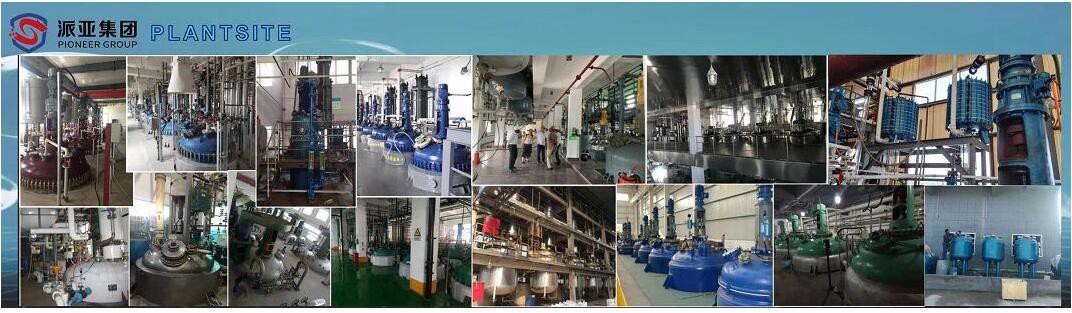

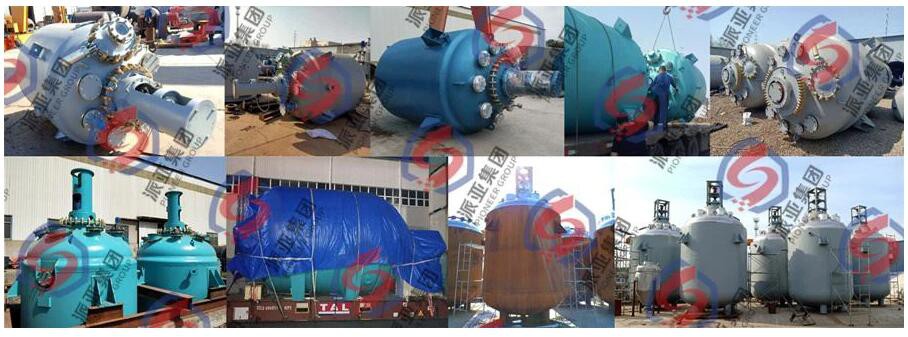

PLANTESITE

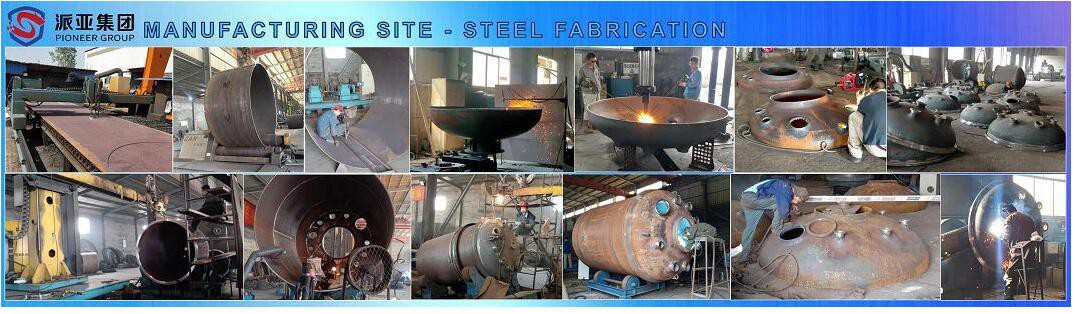

QUALIFIED STEEL VESSEL FABRICATION PROCESS

The Finest Construction Material - The MOC is bought from famous brand with chemical composition & heat analysis and mechanical performance inspection report to assure the quality

Steel Bending & Machining - CNC control system and special tooling to assure the dimension

Nozzles Swagging on Head - The nozzle area is heated until the steel becomes ductile and a die can be hydraulically forced through the pilot hole, then locating the nozzles on head to assure the arc of R angle and prevent lined glass spalling from stress at this position

Steel Welding Method - SAW & SMAW

Weld Joint Inspection - Head: RT-100%; shell: RT-20%; Closure ring: PT by kerosene-100%; Jacket to closure ring: MT-100%

Coating Surface Grinding - By grinding machine and manual to assure the coating surface smooth

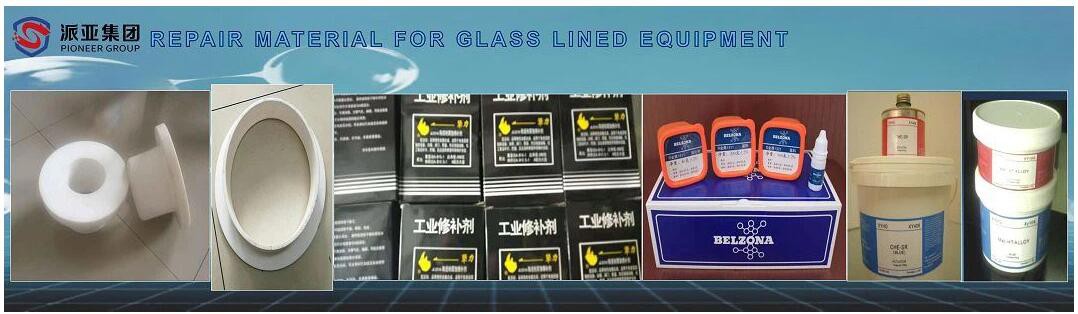

GLASS LINED VESSEL RAPAIR
