Description

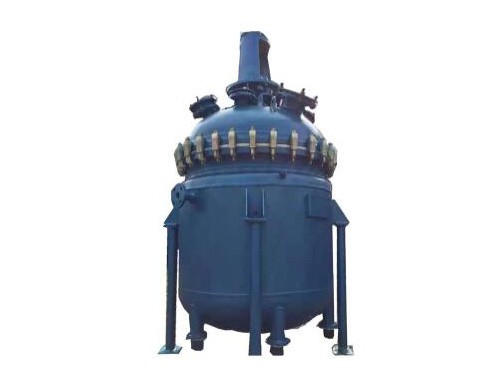

Electric heating glass lined reactor have same structure with U type Jacketed K/AE/F/Q/CE type glass lined reactor, but there are a set of heating tube with flange which welded on the U type jacket site bottom for insert electric heating element to heat thermal oil that filled in the U type jacket directly. This type glass lined reactor only application in endothermic reaction. The thermal oil temperature automatic closed loop control circuit consist of heating elements，RTD sensor and PID controller.
PRODUCT SPECIFICATION
|
Capacity |
50 to 5000 Liters (K/AE series, GB/T25027-2018/DIN28136); |
|
Designed Pressure of Vessel |
0.25 Mpa, 0.6 Mpa,1.0 Mpa |
|
Designed Pressure of Jacket |
0.6 Mpa |
|
Jacket Type |
U Type |
|
Designed Temperature |
-20 to 200 ℃ (K/F series) |
|
Thickness of Lined Glass |
0.8 to 2.0 mm (K/F series) |
|
Agitator Type(Optional) |
Frame/Anchor type: 50 to 80rpm with blade end linear speed not more than 5m/s (K/AE series,)； |
|
Drive Device for Agitating |
Flameproof AC Motor (Optional) with Gear Reducer |
|
Shaft Seal |
Stuffing Seal (≤0.25 Mpa)； |
|
Spark Test for Lining-glass |
20KV after glass-ling fired, and 10KV before delivery |
|
Hydraulic Test |
1.2 times designed pressure for jacket & vessel |
|
Temperature Resistance |
Chilling shock: 110 ℃, Thermal shock: 120 ℃ |
|
Design Standard |
GB/T150.1~4-2011,TSG21-2016/XG1-2020,GB/T25025-2010, GB/T25026-2017, GB/T25027-2018, HG/T20569-2013 (K/F series); |
|
Nozzle & Flange Standard |
HG/T(GB), ASME, JIS, DIN (Optional) |

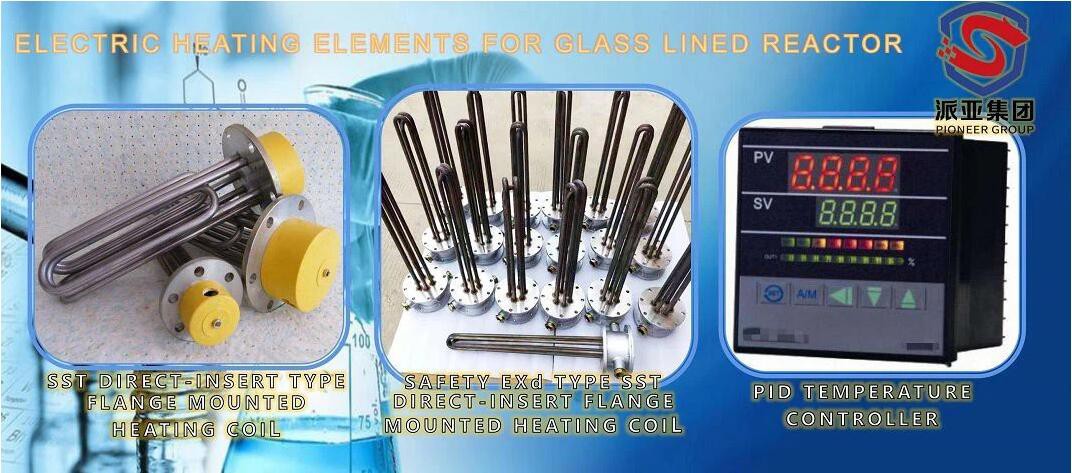

ACCESSORIES FOR ELECTRIC HEATING GLASS LINED REACTOR
INAPPLICATION MEDIA & OPERATING CONDITIONS FOR GLASS LINED EQUIPMENT
CAUTION ITEMS DURING MAINTENANCE AND OPERATING OF GLASS LINED EQUIPMENT

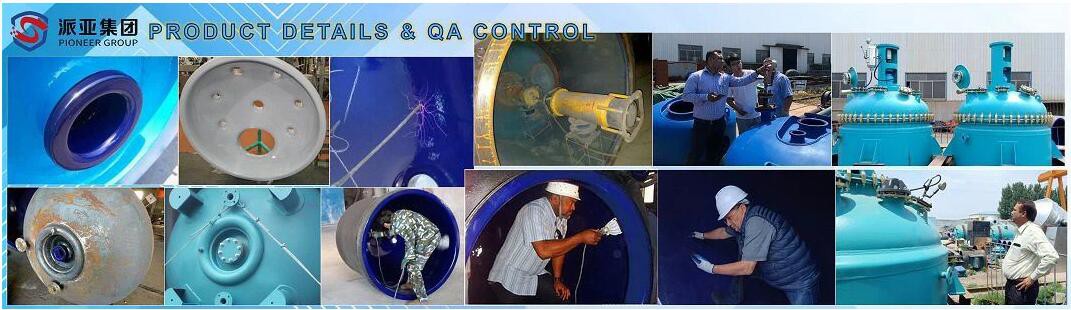

MAJOR FACTORY INSPECTION
◆Mechanical performance test for steel substrate
◆Tensile strength test for clamps
◆Anti-corrosion performance test for glass lining/enamel with test bar or block
◆Weld joint inspection with Head: RT-100% and shell: RT-20%
◆Nozzles position and flatness inspection
◆Visual inspection for the lined glass layer after firing
◆Lined glass thickness detection after firing
◆20kV spark test for the lined glass layer after firing
◆Hydraulic test for Jacket and Vessel
◆No-load running rest or working test with water to test the performance of agitating system & electric control system
◆10kV spark test and finish inspection for the lined glass layer before delivery
CERTIFICATE
OUR PARTNER
VISITORS AND EXHIBITION

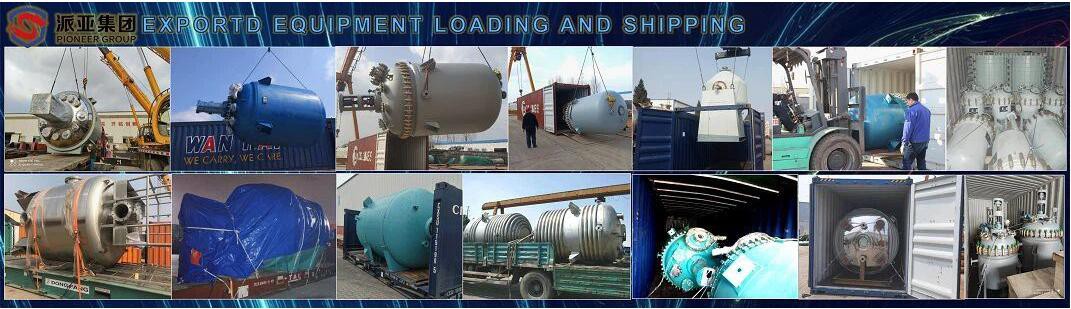

EXPORTS
FAQ
1. For we can quote accurately and supply quality products, please provide technical data along with your inquiry as such:
1) Required design and working pressure, temperature of equipment
2) The corrosion performance or PH value of working medium (if have)
3）Connect flange standard
4) Power supply - Voltage, Frequency, Explosion proof and protection class according with field application
5) Equipment operating ambient - Installation site(Room/outdoor installation, heated/unheated room), class of hazardous and fire hazardous area, climatic version and category of location
2. Our MOQ is one set of each equipment.
3. Our port of loading is Qingdao seaport, P.R.China
4. Our delivery time is from 60 to 120 days after we get the 30% deposit payment and confirm the diagrams for different equipment.
5. Our product warranty time is one year from delivery.
6. Our common payment term is 30% of contract amount by T/T advanced as deposit, balance 70% by T/T or L/C at sight.
7. If your need the certificate that issue by a third party, please let us know.
