Description

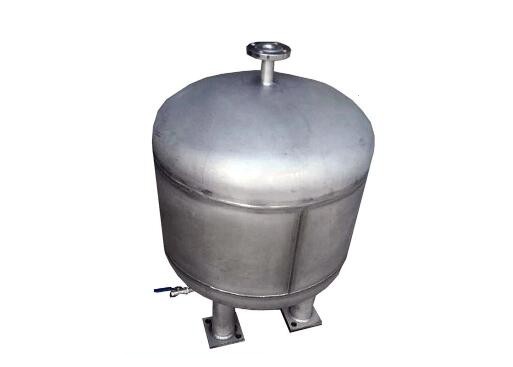

Hastelloy tank has good corrosion resistance that canbe apply in reducing environments, complex mixed acid environments and solutions containing halide ions. Hastelloy is also one of the few metal materials that can resist the corrosion of fluoride ions.
PRODUCT SPECIFICATION
|
Capacity |
50 to 3000 Liters |
|
Designed Pressure of Vessel |
-0.1-1.6 Mpa |
|
Designed Pressure of Jacket |
0.6 Mpa |
|
Jacket Type(Optional) |
U Type |
|
Designed Temperature |
0 to 300 ℃ |
|
Hydraulic Test |
1.5 times designed pressure for jacket & vessel |
|
Design Standard |
GB/T150.1~4-2011,TSG21-2016/XG1-2020, JB/T4756-2006 ; |
|
Nozzle & Flange Standard |
HG/T(GB), ASME, JIS, DIN (Optional) |

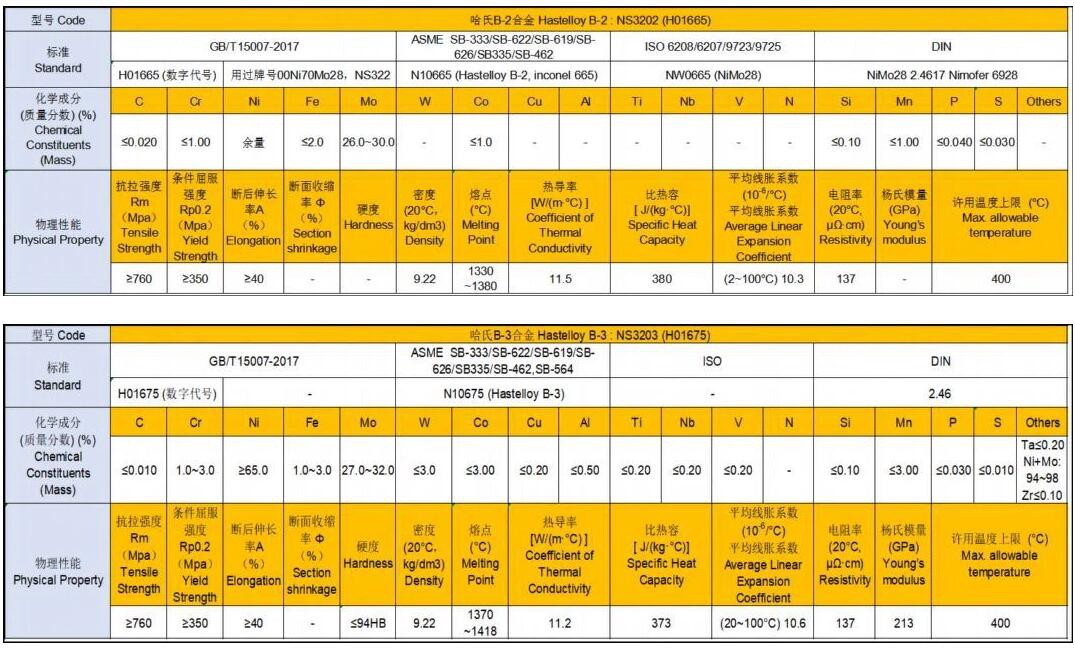

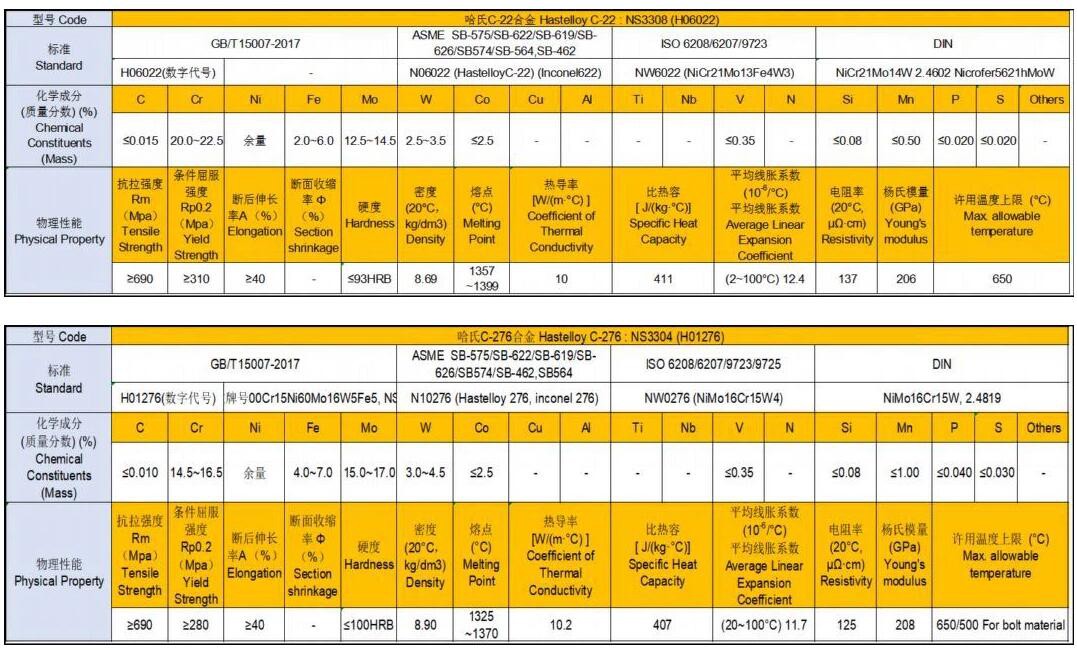

PROPERTY OF COMMON USE HASTELLOY MATERIAL
Hastelloy is an ultra-low carbon nickel-based corrosion-resistant alloy, which is mainly divided into two categories: nickel-chromium alloy and nickel-chromium-molybdenum alloy. Commonly used as pressure vessels of hastelloy model include B-2 and B-3 (Ni-Mo alloy), C-276 (Ni-Cr-Mo-Fe-W alloy), and C-22 (Ni-Cr-Mo-W alloy).
CAUTION
Hastelloy vessel has not good corrosion resistant property in trivalent iron salt and divalent copper salt, so it should be avoided or used with caution.
CERTIFICATE
CERTIFICATE
VISITORS AND EXHIBITION
PLANTESITE
EXPORTS
FAQ
