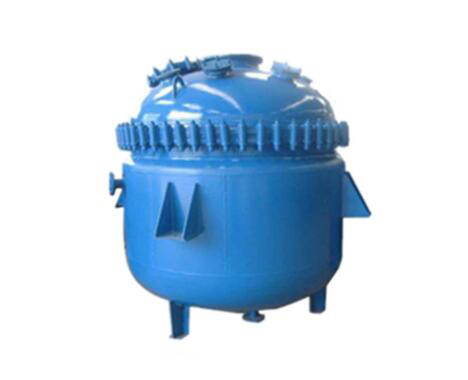

Glass lined distillation tank

Description

Glass lined distillation tank apply in distillation process for the separation of thermodynamics and other separation means when extraction, adsorption as compared to the system without the use of Other than the solvent component, thereby ensuring without introducing new impurities. It structure same as jacketed reactor but without agitating system.

Distillation is the process of separating the components or substances from a liquid mixture by using selective boiling and condensation. Distillation may result in essentially complete separation (nearly pure components), or it may be a partial separation that increases the concentration of selected components in the mixture. In either case, the process exploits differences in the relative volatility of the mixture's components. In industrial chemistry, distillation is a unit operation of practically universal importance, but it is a physical separation process, not a chemical reaction.

Distillation tank & column is an essential equipment used in distillation of liquid mixtures so as to separate the mixture into its component parts, or fractions, based on the differences in volatilities.

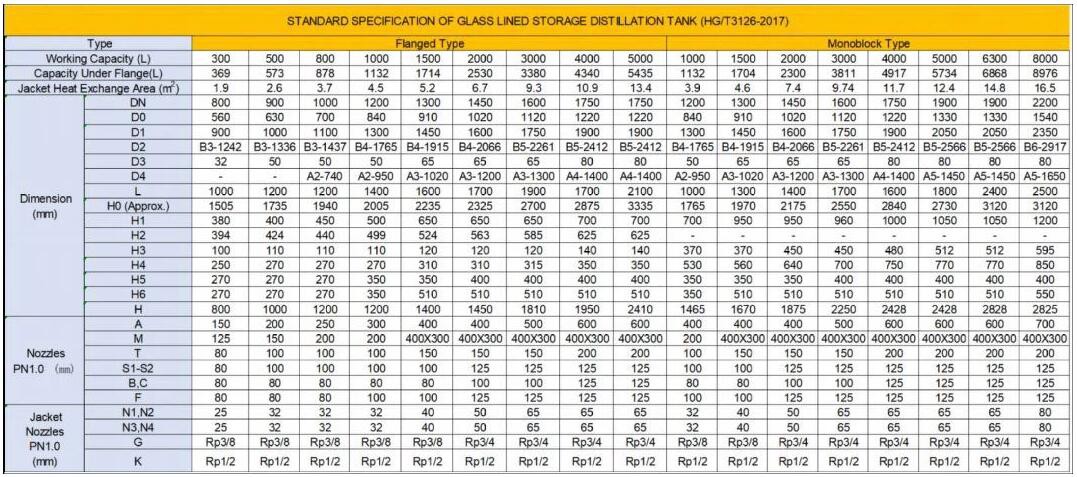

PRODUCT SPECIFICATION

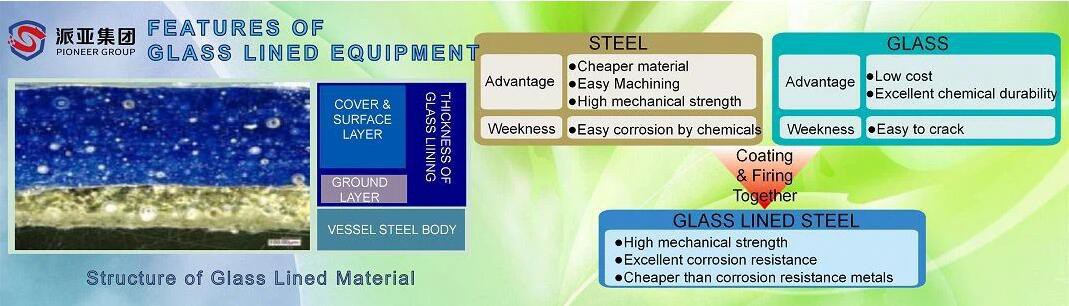

FEATURES OF OUR GLASS LINED EQUIPMENT

Corrosion Resistance -The inner lined glass is extremely resistant to corrosion by acids and alkalies (except for hydrofluoric acid and hot concentrated phosphoric acid)

Anti-stick - Many materials will not stick to glass, but will stick to metal

Purity - The inner lined glass has high quality standards for food and drug applications

Flexibility - The glass lined steel can handle a diverse range of chemical conditions

Easy To Clean - glass lining surface enables quick, easy cleaning and sterilization

Absence Of Catalytic Effect - eliminates the possibility of catalytic effect that can occur in vessels made with various exotic metals

Economy - the cost is comparable to stainless steel and most alloys

Excellent Insulation - When does 20KV high-frequency spark testing, the electric spark can not penetrate the lined glass

Temperature Resistance - Thermal conductivity is only 1 to 0.1 percent of metal

Impact Resistance - The impact resistance of superior products is 260*10-3J

Customized Design - Design and manufacture according to the condition and requirement of customer
